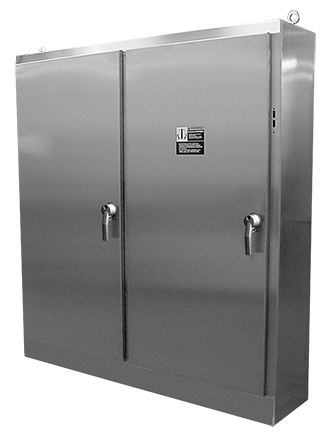

A90XM7824SSN4

A90XM7824SSN4 SPECIFICATIONS • Manufactured from 12 gauge Type 304 stainless steel • Seams continuously welded and ground smooth • Body stiffeners in larger enclosures for extra rigidity • Body flange trough collar excludes liquids and contaminants • Heavy-duty lifting eyes anchor into reinforced top • Removable centerposts permit easy panel installation • Heavy-gauge continuous hinges • Heavy-duty 3-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle on all doors • Panel supports • Data pocket is high-impact thermoplastic • Seamless foam-in-place gasket provides oil-tight and dust-tight seal against contaminants • Removable 11 gauge steel panels mount on collar studs • Master door is far right-hand door on all enclosures • Type 316 stainless steel handle with defeater on master door • Type 316 stainless steel handle (non-defeater) on slave door • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order. • Preferred cutout on right flange provides mounting for most disconnect operators • Bonding provision on doors; grounding studs on body • Accessory mounting channel provided in enclosure top FINISH Stainless steel enclosures are unpainted. Sides and body have smooth #4 brushed finish. White mild steel panels are furnished with enclosure. Optional conductive panels are available. ACCESSORIES See also Accessories. Electric Heater Compact Cooling Fans PaneLite Enclosure Lights Operator Adapters for Preferred Cutouts An operator ada
